Technical Parameters
| Thickness of the wood | 10-50mm |
| Edge band thickness | 0.4-3mm |
| Min width of the wood | ≥60mm |
| Min length of the wood | ≥160mm |
| Feeding speed | 18-24mm/min |
| Gluing motor | 0.37kw |
| Heating power | 1.5KW |
| Pre-milling Motor | 2.2KW*2 |
| End cutting Power | 0.55KW*2 |
| Rough Trimming motor | 0.75KW*2 |
| Fine trimming Motor | 0.75KW*2 |

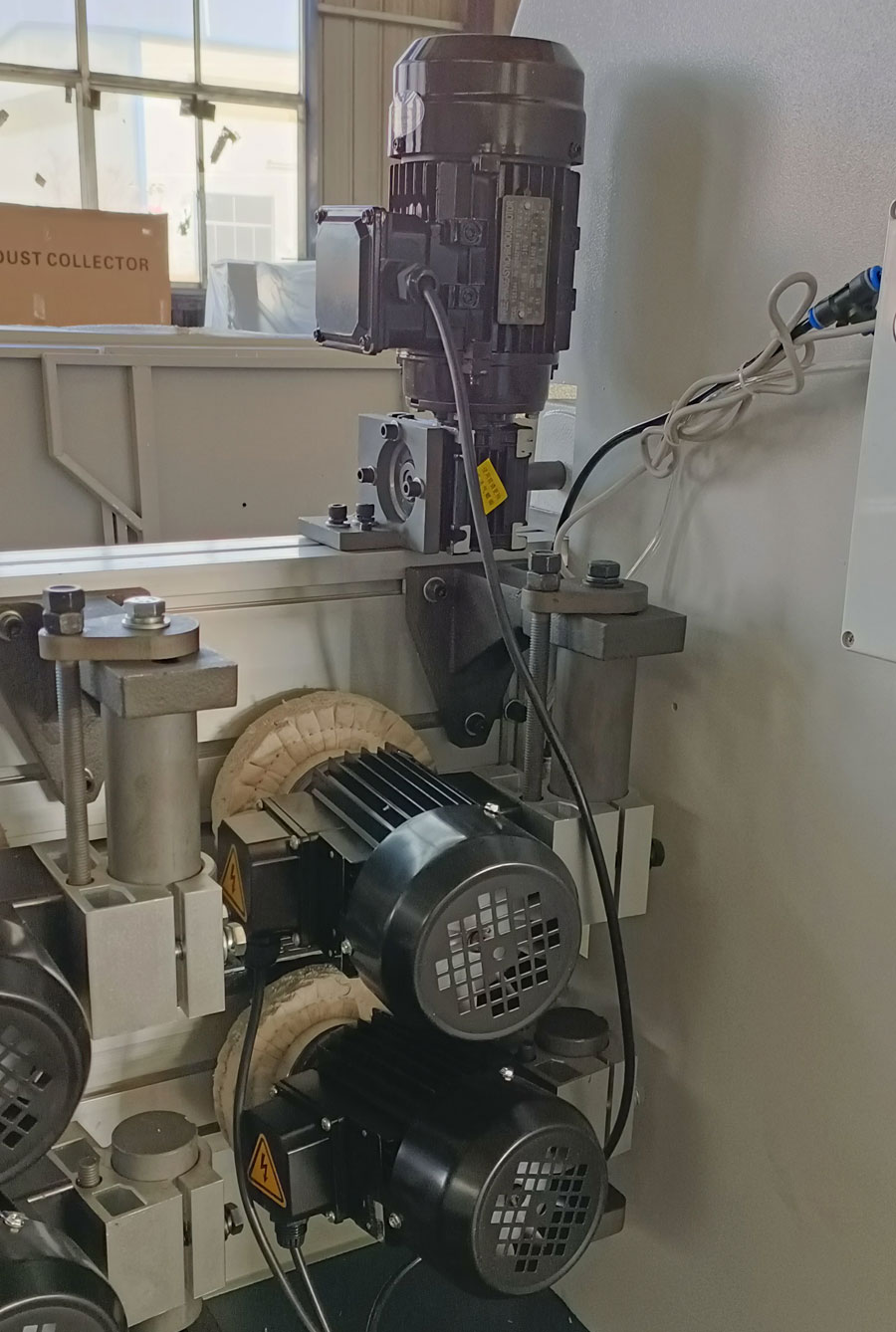

| Buffing Motor | 0.18Kw*2 |
| Feeding Motor | 5.5KW |
| Air pressure | 0.6Mpa |
| power | 380V /50Hz 3 Phase |
| Total power | 22KW |
| The glue temprture | 180-200 degree |
| Outsize | 8900*1000*1600mm |
| weight | 2700kg |
