Premium Woodworking Solution Company of China.

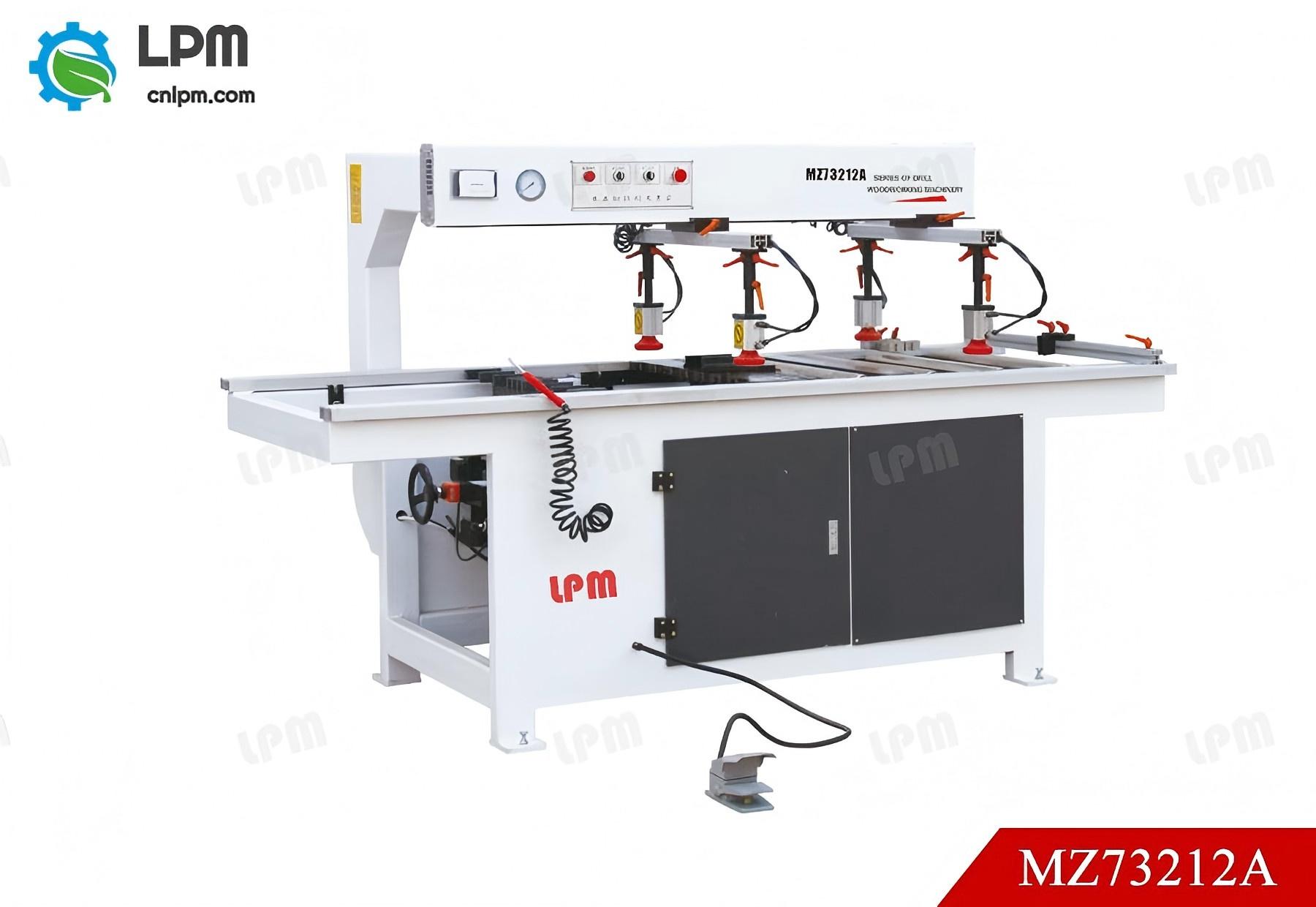

MZ73212A Double row multi-spindle woodworking drilling machine

Product description:

Applicable products: drilling of wood board, fiberboard, particleboard, medium density board and other wood-based board.

Achieve results: large drilling range, drilling depth, distance positioning quickly and accurately.Equipped with size digital calculator, improve work efficiency.

Structure advantage: the machine body adopts double support, big measure design, enhance the stability of the machine.Fuselage parts are made of high quality steel, which will never deform after high temperature annealing (eliminating internal stress).

Imported original brand electrical components, touch screen control system, simple and stable operation, powerful function, low failure rate.

Contact Us

Technical Parameters

Max.Drilling Diameter单孔φ35mm
Max.Drilling Depth60mm
Max.Processing Pitch330-1220mm
Total Number of Drilling Shafts21轴*2排
Spindle Speed2800r/min
Total Power of Motor15kW*2
Air Pressure0.6-0.8Mpa

Installation Size

2400x1080x1400mm
Weight550kg
